15.6 inch Industrial Panel PC | Intel i3/i5/i7 | Touchscreen HMI | IP106-156
The 15.6 inch Industrial Panel PC (IP106-156) is a high-performance touchscreen computer built for harsh industrial environments. Featuring Intel® Core™ i3/i5/i7 processors (4rd–13th Gen), a fanless aluminum chassis, and FHD capacitive touchscreen, this industrial panel PC is ideal for factory automation, medical equipment, and outdoor kiosks. With expandable I/O, wide temperature tolerance (-10°C~60°C), and multiple mounting options, the IP107-156 delivers reliability where standard PCs fail.

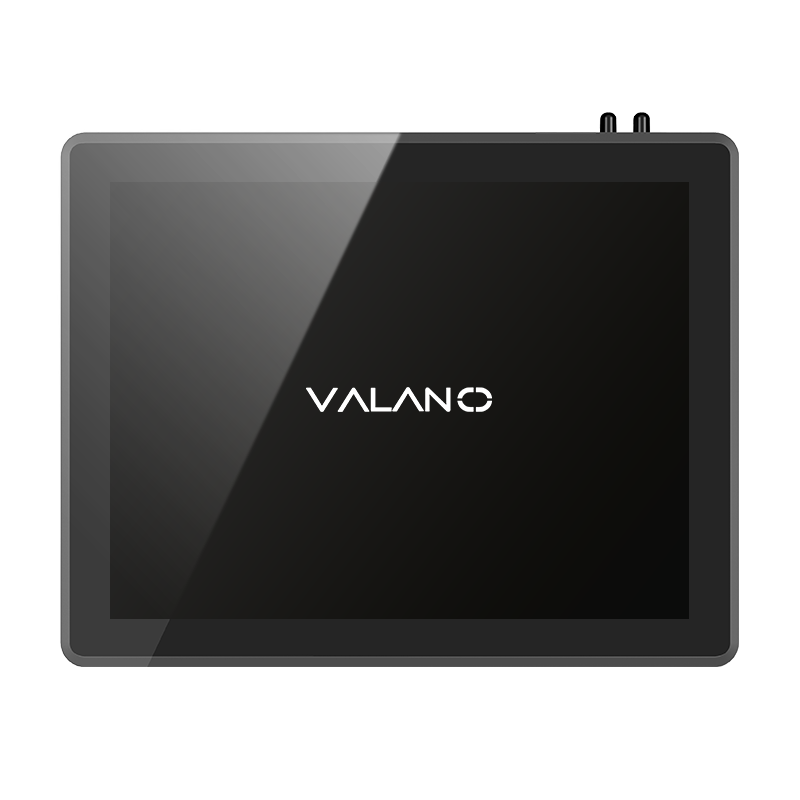

- 15.6″ FHD Touchscreen – 1920×1080, 350cd/m² brightness, 16:9 aspect ratio.
- Intel® Power – Choose from 3rd–10th Gen i3/i5/i7 CPUs for scalable performance.
- Fanless & Dustproof – Aluminum enclosure, -10°C~60°C tolerance, ideal for factories.

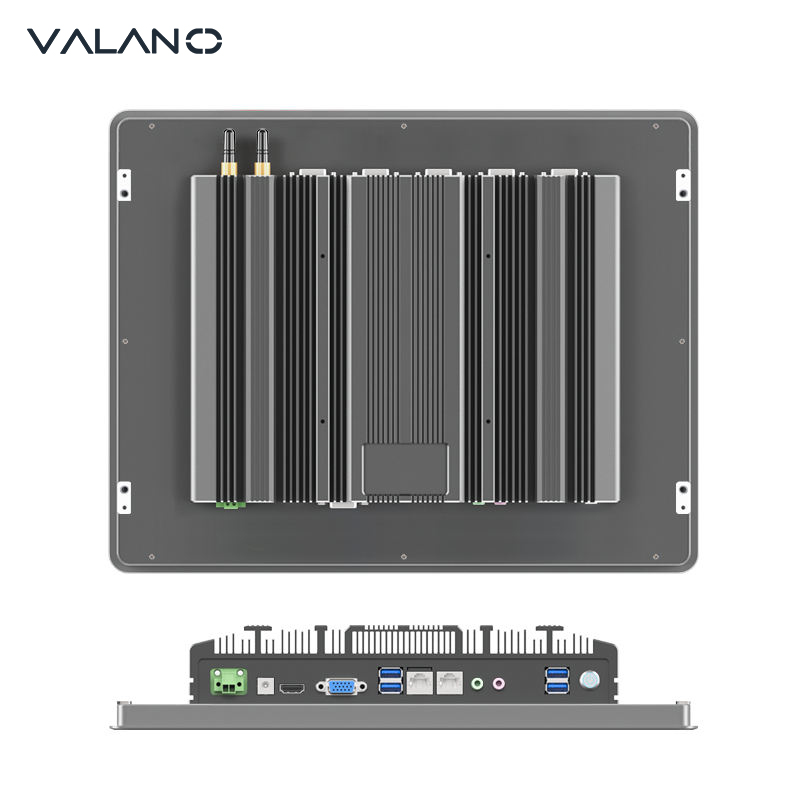

- Expandable I/O – 4x USB, dual LAN, COM ports, HDMI, optional 4G/WiFi/GPIO.
Flexible Mounting – Embedded, VESA, wall/desktop installation.
15.6 inch Industrial Panel PC Key Features
✔ 15.6″ Industrial-Grade Touchscreen – Full HD (1920×1080), 350-nit brightness, 6H hardness, and 10-point capacitive touch for gloved operation.
✔ Intel® i3/i5/i7 Power – Scalable CPU options from 4rd to 13th Gen for demanding automation, HMI, and machine vision tasks.
✔ Fanless & Dustproof Design – Fully sealed aluminum enclosure (IP65) for factories, food processing, and dusty environments.
✔ Rich Industrial I/O – 4x USB, 2x COM, HDMI, LAN, GPIO, and optional 4G/WiFi for seamless PLC/SCADA integration.
✔ Wide Temperature Range – Operates in -10°C~60°C and stores in -20°C~85°C, ensuring reliability in extreme conditions.
✔ Flexible Mounting – VESA , panel-mount, or desktop stand options for versatile installation.
15.6 inch Industrial Panel PC Technical Specifications
| Display | 15.6″ FHD (1920×1080), 350cd/m², 16:9 |
| Touchscreen | 10-point capacitive |
| CPU Options | Intel® i3-3217UE to i7-10510U (3rd–10th Gen) |
| RAM/Storage | Up to 16GB DDR3L / 512GB SSD (+ 2.5″ HDD expansion) |
| OS Support | Windows 7/10, Linux |
| I/O Ports | 4x USB, 2x COM, HDMI, LAN, audio, optional 4G/WiFi/GPIO |
| Power Supply | 12V/5A DC, wide-voltage support (9~36V optional) |
| Environment | Fanless, -10°C~60°C operating, -20°C~85°C storage |
| Mounting | VESA, embedded, wall/desktop |
15.6 inch industrial panel PC Applications:
-
Factory Automation – HMI for PLCs, CNC machines, and robotic arms.
-
Medical Devices – Patient monitoring and diagnostic equipment.
-
Outdoor Kiosks – Self-service terminals in high-traffic areas.
-
Food Processing – Washdown environments with moisture resistance.
-
Transportation – Fleet management and vehicle-mounted systems.
| Model | IP106-156 |
| Processor System | |
| CPU | Intel® Core™ i3, i5, i7 |
| Memory | |
| Memory | 2*DDR4 3200 SO-DIMM , up to 64 GB |
| Display interface | |
| HDMI | 2*HDMI |
| Storage | |
| SDD | 1xM.2 M-Key (2280), supports NVMe/SATA3.0 protocol adaption, and has a built-in SATA3.0 protocol 2.5″ hard disk drive bay. |
| IO | |
| DC IN | 1*2PIN Phoenix Terminal Power Input Holder (9~36V Wide Voltage Input) |
| HDMI | 2*HDMI |
| LAN | 2*Intel I210AT |
| USB | 4*USB3.0(dual-layer TYPE-A) |
| Audio | 1* 2-in-1 audio interface |
| COM | 2*DB9 (COM1/2, optional RS-232/485 mode, optional 5V/12V) |
| PWR Switch | 1×PWR SW+PWR LED |
| Dispaly | |
| LCD | 15.6 inch: 1920*1080 resolution; MTBF: 50000 hours, brightness 300cd/m optional |
| Touchscreen | Capacitive G+G touch program/10-point touch, response time <8ms, touch accuracy ≦2mm |
| Mechanical | |
| Weight | Net weight 5KG；Gross weight 5.5 KG |
| Material | High quality aluminum alloy,Fanless passive cooling |
| Installation | Embedded/Wall/Desktop Bracket |
| Environment | |
| Operation | Temperature: -10~60°C, Humidity: 5%~95% non-condensing ,Humidity: 0% – 95% @40°C non-condensing |
| Storage | Temperature: -20~85℃, Humidity: 5%~95%, non-condensing |
