1U Rackmount Network Security Appliance – Intel J1900 | 4x LAN | F01-1U1900-4L
The F01-1U1900-4L is a compact 1U rackmount network security appliance designed for enterprise and SMB environments. Powered by an Intel® Bay Trail J1900 quad-core processor and equipped with 4x Gigabit LAN ports, this device delivers robust performance for firewall, VPN, traffic filtering, and intrusion detection (IPS/IDS). Its energy-efficient design and versatile storage options make it perfect for network security, content filtering, and diskless boot applications.
-
Equipped with Intel® Bay Trail J1900 processor
-
Built-in Huntkey 75W power supply
-
1×DDR3L 1333 SO-DIMM memory slot, supports up to 8GB
-
1×mSATA, 1×SATA, 1×Mini-PCIe, 1×SIM slot
-
4×LAN ports, 1×USB 2.0, 1×USB 3.0, 1×Console port, 1×VGA
-
Supports watchdog, Bypass, power-on startup, diskless boot, and other functions
-
Ideal for security auditing, content filtering, traffic control, IPS/IDS, firewall, VPN, and other network security solutions
Key Features & Benefits
1. High-Performance Hardware
-
Intel® J1900 Quad-Core Processor: Low-power, high-efficiency CPU for seamless multitasking.
-
DDR3L RAM Support: 1x SO-DIMM slot (up to 8GB) for smooth operation of security applications.
-
Dual Storage Options: 1x mSATA (optional SSD) + 1x SATA (supports 2.5″/3.5″ HDD/SSD).
2. Advanced Connectivity
-
4x Gigabit LAN Ports: Intel WGI210AT controllers for reliable, high-speed networking.
-
USB 3.0 + USB 2.0: Fast data transfer and peripheral connectivity.
-
Console Port: Easy management and troubleshooting.
3. Network Security Optimized
-
Bypass, Watchdog, Diskless Boot: Ensures uninterrupted operation and fail-safe protection.
-
Mini-PCIe & SIM Slot: Expandability for wireless/WAN modules (e.g., 4G/LTE).
-
Supports Firewall, VPN, IPS/IDS: Ideal for cybersecurity, traffic shaping, and content filtering.
4. Compact & Reliable Design
-
1U Rackmount Form Factor: Saves space in server racks (430mm × 300mm × 44mm).
-
Wide Temperature Range: Operates in -10°C to 60°C environments.
-
Built-in 75W Huntkey PSU: Energy-efficient and stable power delivery.
Applications
✔ Network Security: Firewall, VPN, IPS/IDS, content filtering.
✔ Traffic Management: Bandwidth control, QoS, deep packet inspection.
✔ Enterprise/SMB: Ideal for data centers, ISPs, and office networks.
| Model | F01-1U1900-4L |
| Processor System | |
| CPU | Intel® Bay Trail J1900 processor |
| Memory | |
| Slot Number | 1×SO- DIMM |
| Type | DDR3L 1333 |
| Max Size | 8GB (optional memory) |
| Channels | Single Channel |
| Storage | |
| mSATA | 1 (optional hard disk) |
| SATA | 1 (supports 2.5-inch or 3.5-inch hard disk) |
| Expansion Slot | |
| Mini-PCIe | 1 |
| SIM Card | 1 |
| PCIex4 | 0 |
| Power Requirements | |
| Input PWR | 4Pin ATX interface |

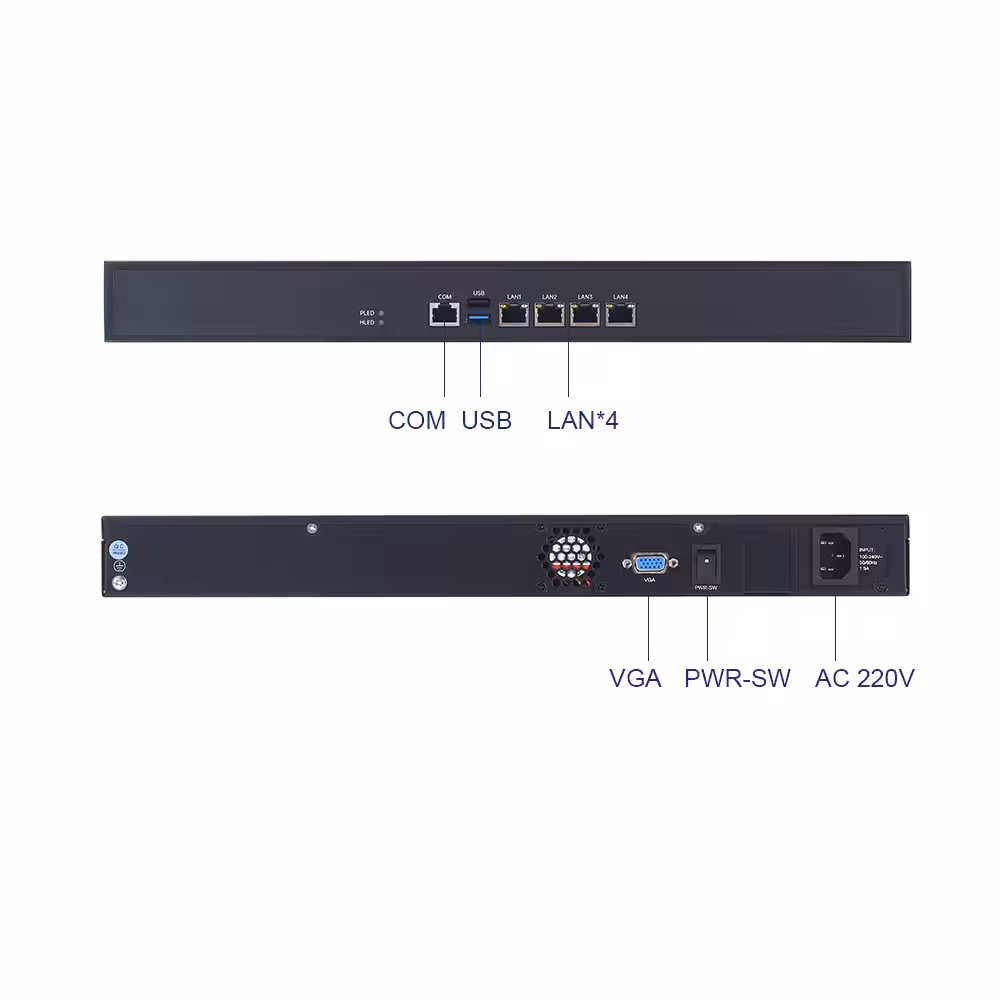

| Rear IO | |
| LAN | Onboard 4 power supplies (Intel WGI210AT) |
| USB3.0 | 1 |
| USB2.0 | 1 |
| Console | 1 |
| HDD LED | 1 |
| PWR LED | 1 |
| VGA | 1 |
| Mechanical & Environment | |
| Dimension | 430*300*44 (W×D×H) |
| Operation | -10~60℃，10%~90%，non-condensing |
| Storage | -40~85℃，5%~95%，non-condensing |
