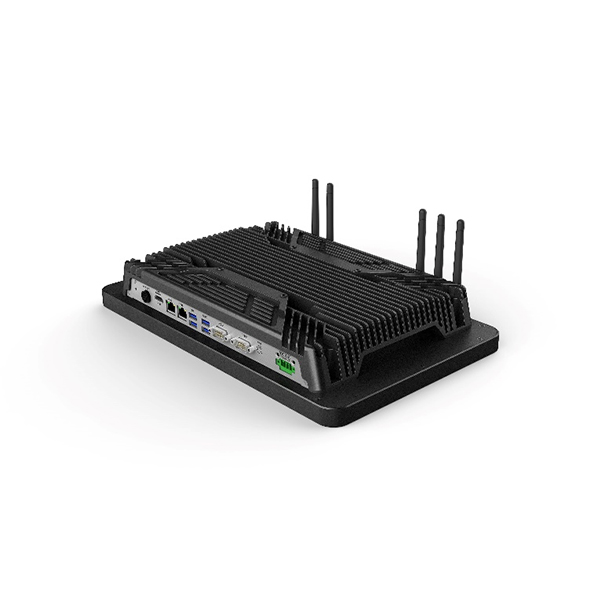

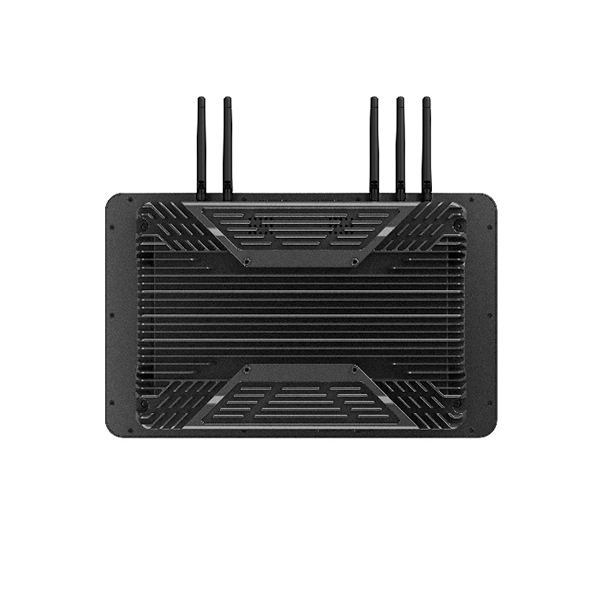

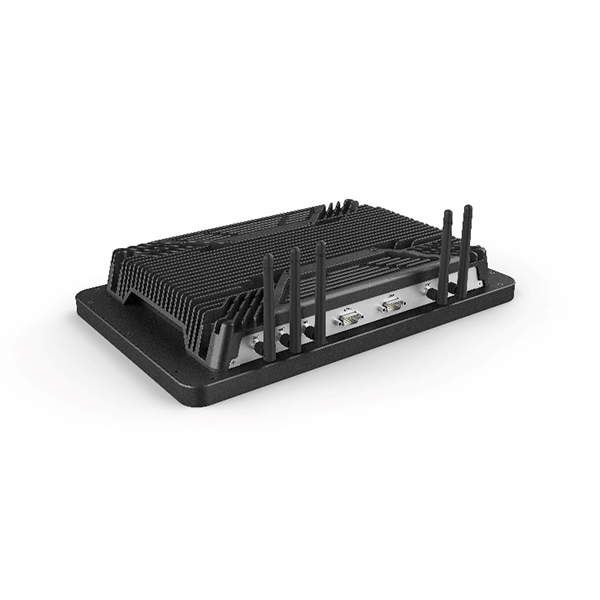

15.6 Inch Fanless Industrial Panel PC with Optional Camera | IPC106-156
15.6 Inch Fanless Industrial Panel PC with optional camera, ideal for factory automation, control, and smart manufacturing solutions.
-
15.6″ Full HD Display — 1920×1080 resolution, 16:9 aspect ratio, G+G 10-point capacitive multi-touch; optional resistive touch.
-
Optional 5MP Camera — Integrated camera for industrial visual monitoring or inspection use cases.
-
Intel® Alder Lake-U Core™ Processor — Supports Core™ i7/i5/i3 CPUs for superior performance and low power consumption.
-
Rich Connectivity — 2× Intel Gigabit LAN, 4× USB 3.0, 1× HDMI, 2× COM (expandable to 4), and 1× SIM slot.
-
Flexible Expansion — Mini-PCIe and M.2 (2230/2280) slots support 4G/5G, Wi-Fi, Bluetooth, and NVMe/SATA SSDs.
15.6 Inch Fanless Industrial Panel PC – Reliable Solution for Harsh Environments
The 15.6 Inch Fanless Industrial Panel PC from Valano is designed for industrial automation, smart retail, and intelligent control systems that require reliable 24/7 operation. With a rugged aluminum chassis and advanced fanless cooling design, this industrial panel PC ensures stable performance even in dusty or high-vibration environments.
Key Features
-
15.6-inch industrial-grade display with 1920×1080 resolution and high brightness for clear visibility in any lighting conditions.
-
Fanless cooling system for silent operation and zero maintenance.
-
Rugged IP65-rated front panel for water and dust protection.
-
Powered by Intel® Celeron®, i3, i5, or i7 processors for flexible and efficient computing performance.
-
Multiple I/O ports including USB, COM, LAN, HDMI, and GPIO for diverse industrial connectivity.
-
Wide operating temperature range from -20°C to 60°C, ensuring reliability in harsh environments.
-
VESA and panel mounting options make installation easy and adaptable for compact spaces.
Applications
The 15.6 Inch Industrial Touch Panel PC for Automation is ideal for production line control, data acquisition, and real-time machine monitoring. Its fanless design minimizes dust intake and reduces system downtime.
For smart factory and IoT applications, this Industrial Panel PC supports SCADA systems, MES integration, and edge computing, providing continuous and stable operation for mission-critical environments.
In retail and kiosk systems, the Fanless Panel PC with Intel Processor powers self-service kiosks, POS terminals, and digital signage with reliable and quiet performance, even under continuous daily use.
Technical Specifications
Display: 15.6″ TFT-LCD, 1920×1080, LED Backlight
Touchscreen: 10-point capacitive touch
CPU: Intel® Celeron® / i3 / i5 / i7
Memory: Up to 32GB DDR4
Storage: 1×M.2 SSD / 1×2.5″ SATA
I/O Ports: 4×USB, 2×COM, 2×LAN, 1×HDMI, GPIO
Operating Temperature: -20°C to +60°C
Power Input: DC 9~36V wide voltage
Mounting: VESA 75/100, Panel Mount
Certification: CE, FCC, RoHS
Why Choose Valano Industrial Panel PCs
With over 15 years of experience in industrial computing and embedded system design, Valano provides reliable 15.6 Inch Fanless Industrial Panel PC solutions with OEM/ODM customization. Our ISO9001-certified manufacturing ensures product stability, long-term availability, and exceptional support for industrial automation, retail, and medical applications.
Contact Valano today to request your 15.6 Inch Fanless Industrial Panel PC quotation or OEM customization service.
| Model | IPC106-156 |
| System | |
| Processor | Intel® Alder Lake-U Core™ i7/i5/i3 CPU |
| Memory | 2× DDR4 3200 SO-DIMM slot, up to 64GB |
| BIOS | AMI 128Mbit SPI Flash |
| OS | Win 10, Win 11,Linux |
| Watchdog Timer | System Reset, Programmable 255 levels timer interval, From 1~255 sec/ min |
| External I/O | |
| Ethernet | 2× RJ45 LAN (I210-AT+I219_LM) |
| Display | 1× HDMI |
| Audio | 1× Audio (Line-out & Mic-in 2 in 1) |
| Camera | 500WPixel (Optional) |
| COM | 2× COM(RS232), COM1/COM2 Support 422/485, Optional RI/5V/12V Power Supply (Optional4C) |
| USB | 4× USB 3.0 |
| Remote SW | 1× Remote ON-OFF |
| Power Input | 1× DC-IN (DC9-36V) |
| Power Button | 1× Power Button |
| OS Recovery | 1× OS Recovery Button |
| Internal I/O | |
| E×pansion slot | 1× Mini-PCIe Slot (Support4G/5G/WIFI) |
| 1× M.2 Key-E 2230 (Support WIFI/BT） | |
| 1× M.2 2280 SSD Slot (Support SATA/NVMe Protocol Auto-Detection) | |
| 1× M.2 2280 SSD Slot (Support NVMe Protocol Auto-Detection) | |
| 1× SIM Card Slot | |
| COM | 2× JCOM (RS232） |
| USB | 1× USB 2.0 |
| GPIO | 1× JGPIO (4DI4DO) |
| SATA | 1× SATA and SATA Power |
| Speaker | 1× SPK (Optional) |
| Touchscreen | |
| Touch Screen | Capacitive Touch Screen, P-cap Multi-Touch |
| Touch | 35,000,000 times |
| Display | |
| Size | 15.6″ |
| Resolution | 1920(H)× 1080(V) |
| Ratio | 16:09 |
| Display colors | 16.2M (6+2bit FRC) |
| Back-light | Bottom edge side, 1-LED lighting bar type |
| Color gamut | 45% |
| Power | |
| Power Input | 9~36V DC-IN |
| Mechanical | |
| Mounting | Panel Mount and VESA-Mount (100×100mm)） |
| Dimension | 380 × 240 × 65mm |
| Suggesting Cut Size | 376 × 236mm(R10) |
| Weight | ~4.5KG |
| Environmental | |
| Operating Temp. | -20℃~ 60℃ |
| Storage Temp. | -25℃~70℃ |
| Operating Relative Humidity | 10%- 90%RH, Non-Condensing |
| Storage Relative Humidity | 5%- 95%RH, Non-Condensing |
Get Free Quote of 15.6 inch Industrial Panel PC
