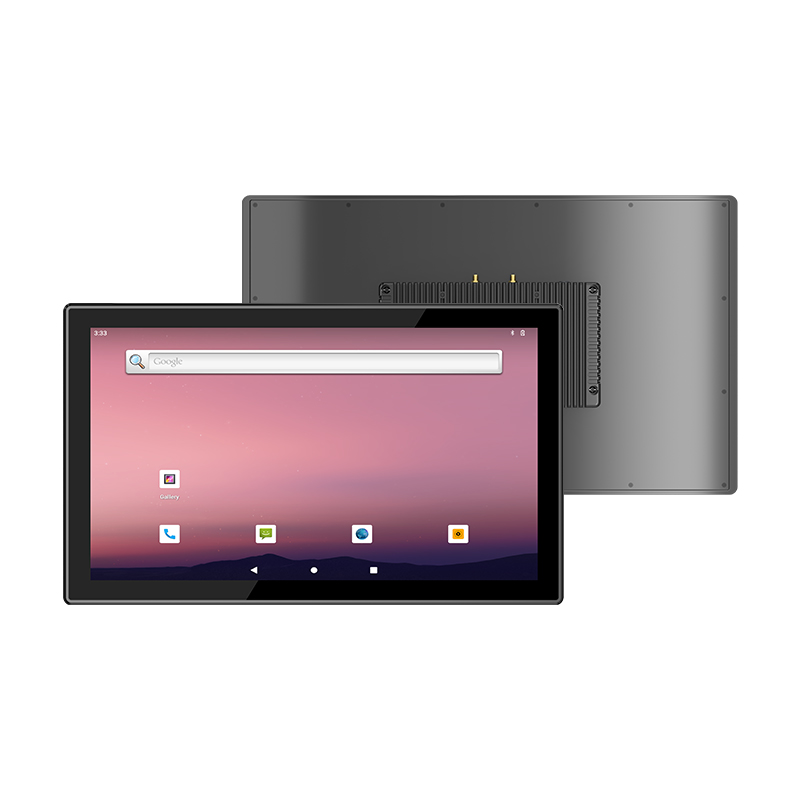

21.5 Inch ARM All-In-One Panel PC | IP306-215
21.5-inch ARM Industrial Android All-in-One PC with IP65 rating and wide-temperature operation, designed for industrial automation and HMI applications.
-
Industrial-Grade ARM Processor: Powered by RK3568 ARM CPU, optimized for energy efficiency and high-performance industrial applications.
-
21.5-inch Full HD Touchscreen: 1920×1080 resolution with 10-point capacitive touch, supporting glove and wet-hand operation.
-
Fanless & Robust Design: Aluminum and metal rear casing for efficient heat dissipation, ensuring 24/7 stable operation.
-
Rich I/O Interfaces: Multiple USB, RS232/RS485, LAN, HDMI, M.2, and MiniPCIe ports for versatile connectivity and expansion.
-
Flexible Installation: PPC hooks and VESA-compatible rear panel enable embedded, wall-mounted, or desktop deployment.
21.5 inch ARM All-In-One Panel PC Performance & Processor
The IP306-215 ARM All-In-One Panel PC is designed for industrial automation applications. It features the RK3568 industrial-grade ARM processor combined with Android 12, offering a high-performance, energy-efficient platform suitable for 24/7 operations. This makes it ideal for factories, control rooms, and other demanding industrial environments.

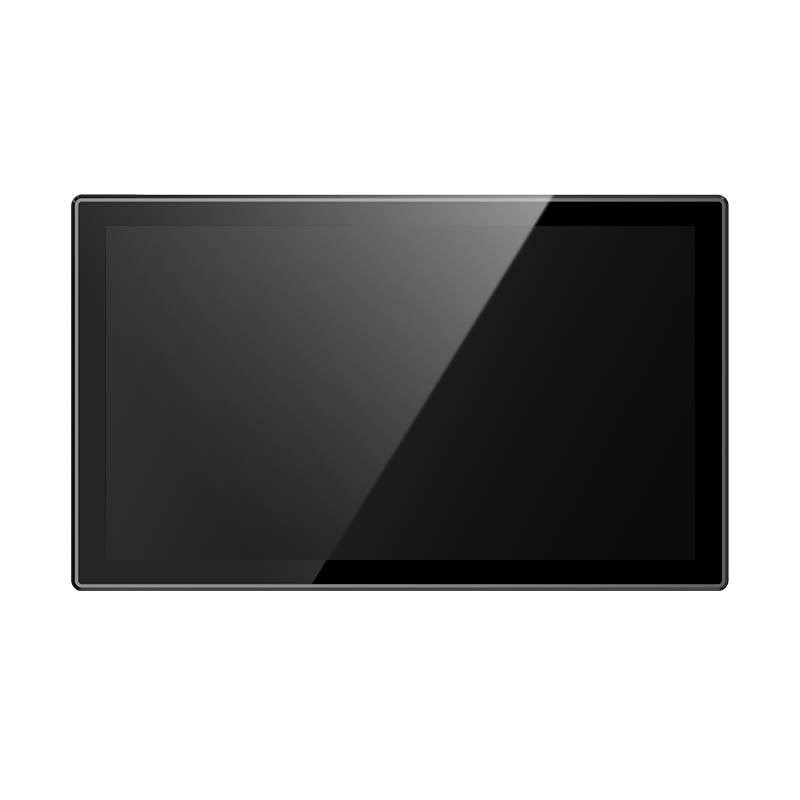

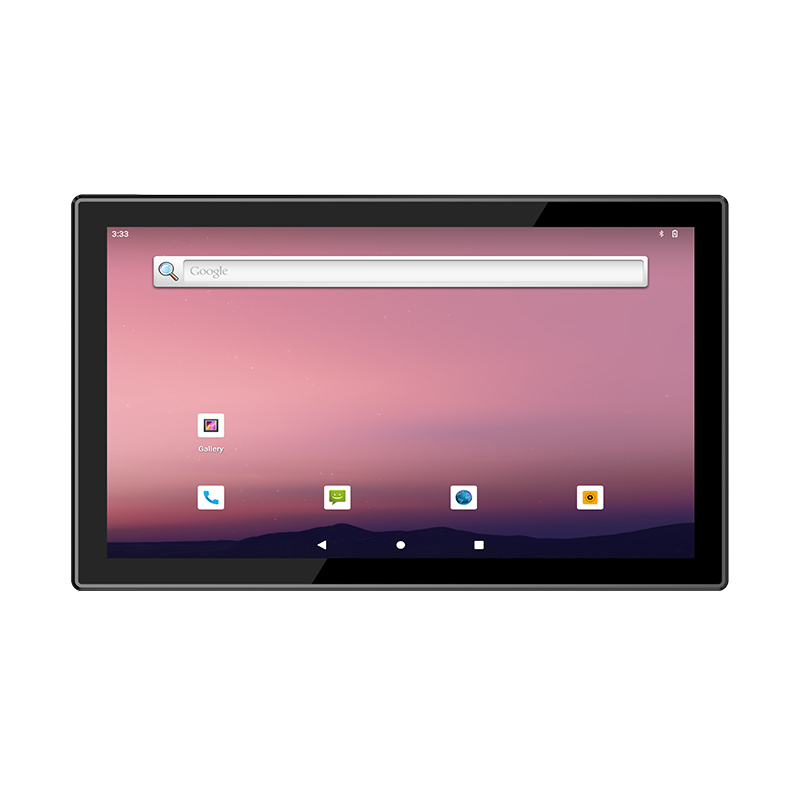

Display & Touch Features
Equipped with a 21.5-inch Full HD capacitive touchscreen, the panel delivers crystal-clear visuals with 1920×1080 resolution. Its 10-point multi-touch interface ensures smooth and precise operation, even with gloves or wet hands, making it suitable for harsh industrial conditions.

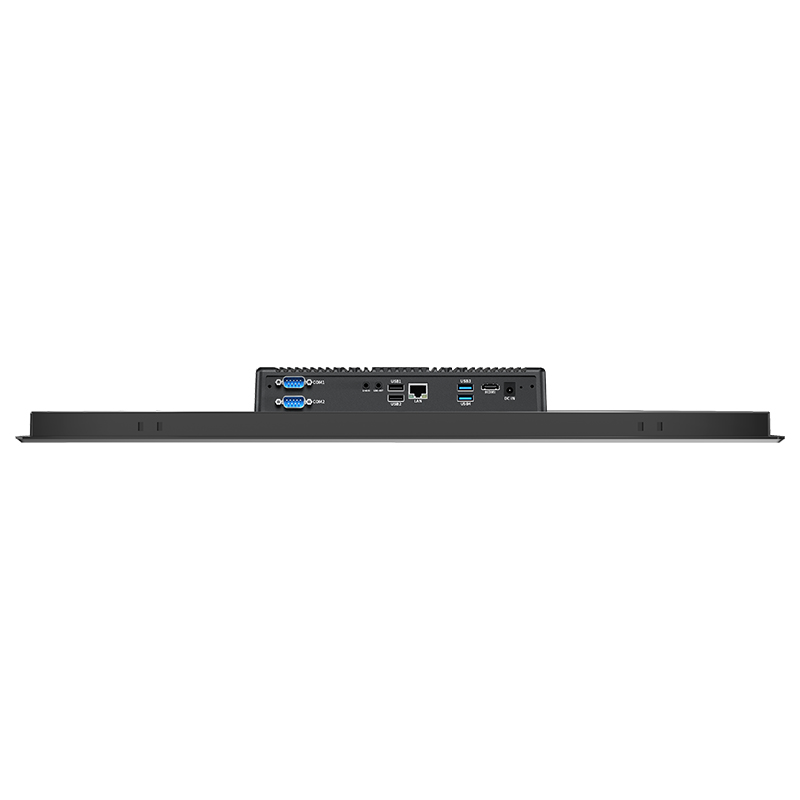

Connectivity & Expansion
The IP306-215 offers multiple connectivity options, including dual USB3.0, dual USB2.0, RS232/RS485, Gigabit LAN, HDMI, MiniPCIe, and M.2 interfaces. It supports expansion modules such as 4G communication devices or additional storage, ensuring compatibility with diverse industrial systems. Integrated Wi-Fi 5 and Bluetooth 5.0 provide reliable wireless connections. Learn more about industrial connectivity solutions here.

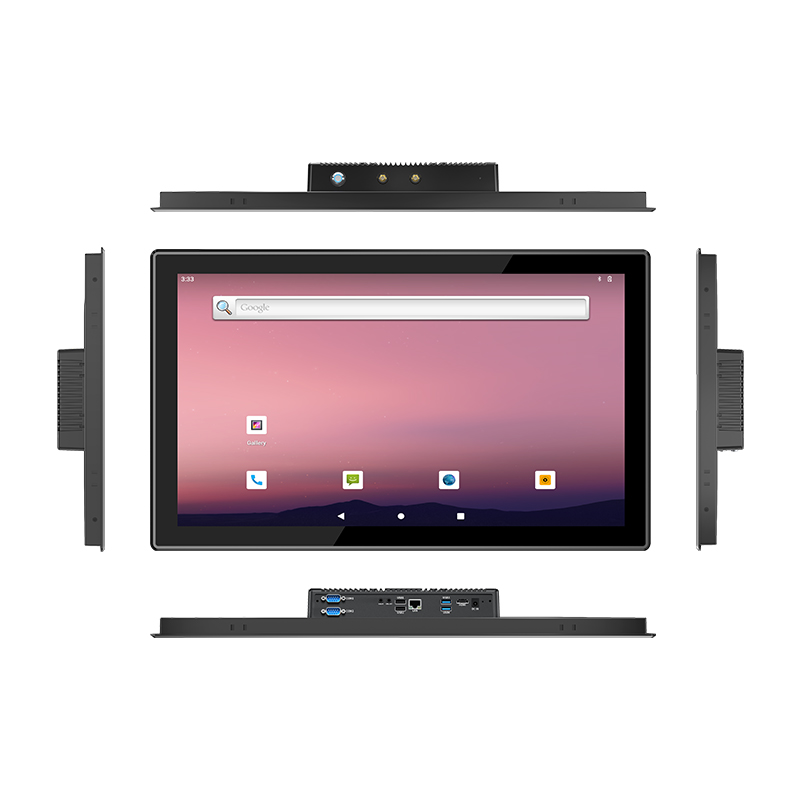

Installation & Flexibility
Designed for maximum flexibility, the panel comes with standard PPC hooks and a VESA-compatible rear panel, supporting embedded, wall-mounted, or desktop installation. This makes it ideal for environments where space efficiency and adaptability are critical.
Why Choose IP306 Series？
By choosing the IP306-215, the customers can reduce downtime, enhance operational efficiency, and simplify system integration. Its rugged design and fanless architecture ensure long-term stability, while versatile connectivity expands functionality across multiple industrial scenarios.
| Mode | IP306-215 |
| Processor System | |
| CPU | RK3568 Quad core 64 bit ARM V8.2 Cortex-A55, up to 2.0 GHz |
| GPU | Mali-G52-2EE |
| Memory | RAM 4GB onboard ROM 64GB |
| OS | |
| Operating System | Android 12 |
| Display | |
| Display | Type: LCD Size: 21.5 inch 16 :9 Resolution: 1920×1080 Brightness: 250 cd/㎡ |
| Touch Pannel | 10 PCAP |
| WIFI | |
| WIFI | 802.11a/b/g/n/ac |
| Bluetooth | BT5.0 |
| 2G/3G/4G | Optional：4G LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 |
| I/O Interface | |
| USB | Standard USB-A USB3.0*1 ，USB3.0*1 OTG，USB 2.0*2 |
| DC IN | Power interface DC IN 12V-24V Power connector *1 |
| Audio | ∮3.5mm Standard Earphone Jack *1 |
| LAN | RJ45 *1 (10M/100M/1000M adaptive) |
| COM | DB9 PORT RS232 *2(Mainboard switchable to RS485：RS485*1，RS232*1) |
| HDMI | HDMI *1 |
| Environment | |
| Working temperature | -20 °C to 60 °C |
| Storage temperature | -30 °C to 70 °C |
| Humidity | 95% Non-Condensing |
| Electrostatic discharge | ± 15kV air discharge, ± 8kV contact discharge |
| Power Adaptor | AC100V ~ 240V、50Hz/60Hz output DC 12V/4A |
| Mechanical | |
| Material | PC+10%GF |
| Dimension | 537 * 324 * 58mm |
| Weight | 6 KG |
| Product Color | Black |
