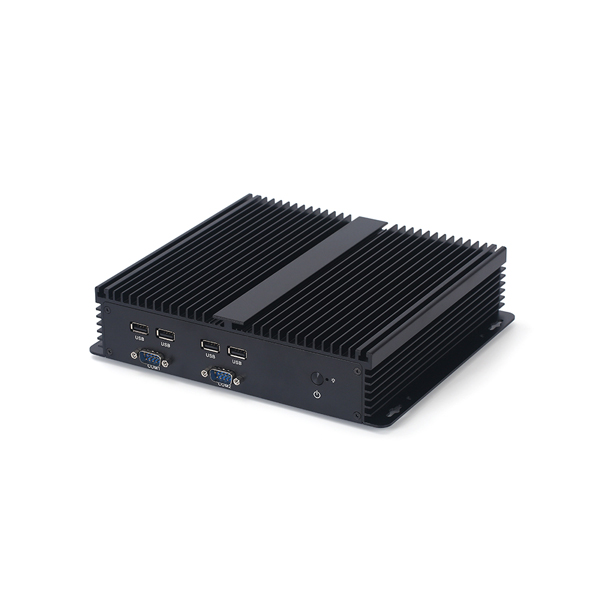

IC01 Industrial Mini PC High-Performance Rugged Computer Aluminum Alloy
The IC01 Industrial Mini PC is designed for high-performance and flexibility, making it an ideal solution for applications in IoT, control systems, and Industry 4.0 environments. Equipped with an Intel® Broadwell – U Core i3-5005U CPU, featuring dual-core, four-thread processing at 2.0GHz with 3MB cache, this mini PC delivers powerful computing while maintaining energy efficiency.
- CPU: Intel® Core™ i3-5005U
- Memory: 1x DDR3L 1600/1333 MHz, up to 8GB
- Storage: 1x MSATA, 1x SATA, 1x Mini-PCIe
- Display: 1x HDMI, 1x VGA, 1x EDP, 1x EDP/LVDS
- IO Port: 2x USB3.0, 6x USB2.0, 1x RJ45, 6x COM
IC01 Industrial Mini PC – High-Performance, Fanless Design for Industrial Use
The IC01 Industrial Mini PC is a compact, powerful solution built to meet the rigorous demands of industrial environments. With its Intel® Broadwell – U Core i3-5005U processor, fanless aluminum chassis, and multiple connectivity options, this device is perfect for applications in IoT, automation, and Industry 4.0. Designed for reliability and flexibility, it offers superior performance while maintaining energy efficiency.
Intel® Broadwell-U Core i3-5005U Processor
The IC01 is powered by the Intel® Core i3-5005U CPU, featuring dual cores and four threads running at 2.0GHz, with a 3MB cache. This provides a balance between performance and power efficiency, ideal for industrial tasks that require multitasking.
Memory and Storage Flexibility
- Supports up to 8GB DDR3L 1600/1333 RAM via a single laptop memory slot.
- Multiple storage options with 1× mSATA, 1× SATA, and 1× Mini-PCIe for customizable storage configurations, enabling faster boot times and system responsiveness.
Extensive Connectivity and Display Options
- Equipped with 2× RJ45 LAN ports, ensuring stable and high-speed network connections for industrial communication needs.
- HDMI, VGA, and EDP/LVDS support allows for dual-display configurations (synchronous or asynchronous), offering enhanced visual monitoring capabilities.
Fanless Design and Rugged Build
The fanless, full-aluminum chassis ensures efficient heat dissipation, reducing dust accumulation and minimizing maintenance needs. The robust design supports multiple mounting options, including desktop, wall, or rail installations, making it suitable for diverse industrial setups.
Advanced Functionality
- Watchdog timer for automatic system recovery
- Diskless boot, network wake-up, auto power-on, and scheduled power-on features for seamless, hands-off operation in critical industrial applications.
| Model | IC01 | |
| Processor System | ||
| CPU | Intel Core TMi3-5005U CPU Dual-Core Quad-Thread Base Frequency 2.0GHz, Cache 3MB | |
| Memory | ||
| Slot Number | 1*SO-DIMM | |
| Type | DDR3L 1600/1333MHz | |
| Max Size | 8GB | |
| Graphics | ||
| Controller | Intel HD Graphics | |
| HDMI | 1*Port+1*Header, multiplexed signals with EDP2, when EDP2 is functional, HDMI is not functional. | |
| EDP | 1,Multiplexing signals with HDMI | |
| EDP/LVDS | 1 | |
| VGA | 1*Port+1*Header | |
| Storage | ||
| MSATA | 1 | |
| SATA | 1 | |
| COM | ||
| Port Number | 6 | |
| Mode | COM3~6 are the same group of pins, COM2 Pin#9 jumper cap optional RI/5V/12V | |
| IO &Connector | ||
| Front I/O | USB2.0 | 4 |
| PWR_SW | 1 | |
| COM | 2 | |
| Rear I/O | VGA | 1 |
| DC_IN | ||
| 1,DC-IN(12V) | ||
| HDMI | 1 | |
| WIFI | 2 | |
| USB3.0 | 2,(A double layer USB3.0 holder) | |
| COM | 4 | |
| LAN | 2(RJ45) | |
| MIC | 1 | |
| AUDIO | 1 | |
| Internal Connect | EDP/LVDS | 1 |
| INVERT | 1 | |
| EDP | 1 | |
| Amplifier | 1 | |
| SATA3.0 Port | 1 | |
| CPU_FAN | 1 | |
| SYS_FAN | 1 | |
| DC-IN | 1 | |
| SATA PWR | 1 | |
| mSATA | 1 | |
| Mini-PCle | 1 | |
| SIM | 1 | |
| LPT | 1 | |
| PS/2 | 1 | |
| F_PANEL | 1 | |
| JUMP | 1×CLR_CMOS, 1×COM PWR, 1×PANEL_PWR,1×JAT/ATX, 2×COM2_SEL | |
| Mechanical &Environment | ||
| Dimension | 235 mm x200 mmx 56.5mm(LxWxH) | |
| PWR Input | DC12V (10% voltage fluctuation) | |
| Operation | -10~60℃,5%~95%RH,non-condensing | |
| Storage | -20-85℃,5%-95%RH,non-condensing | |
| Reliability | ESD Conforms to GB/T17618 Class A standard Contact: ±4KV; Air: ±8KV; EMC in line with GB/T17618 related standards | |
