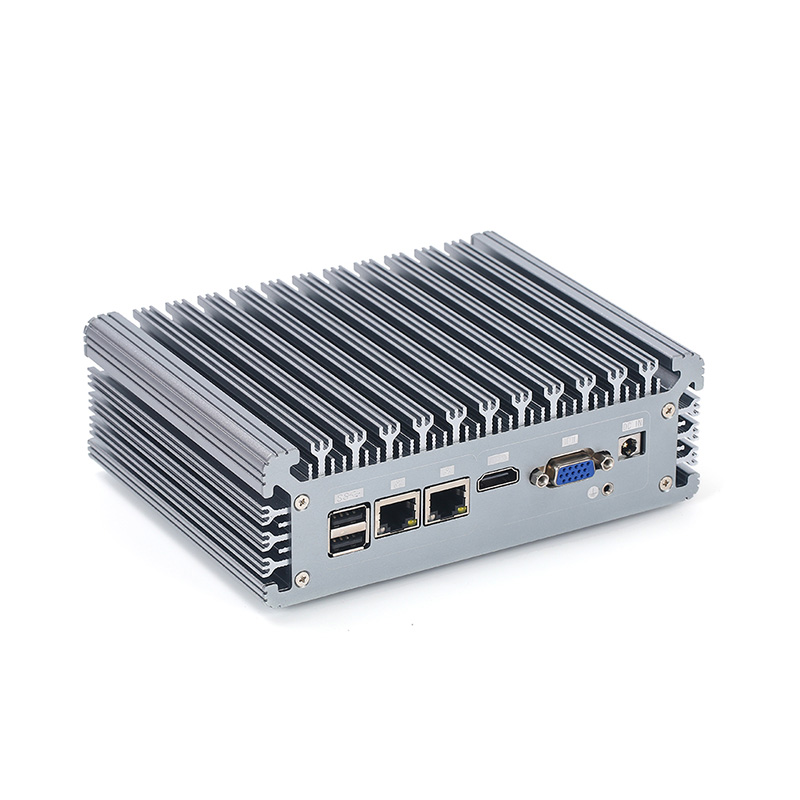

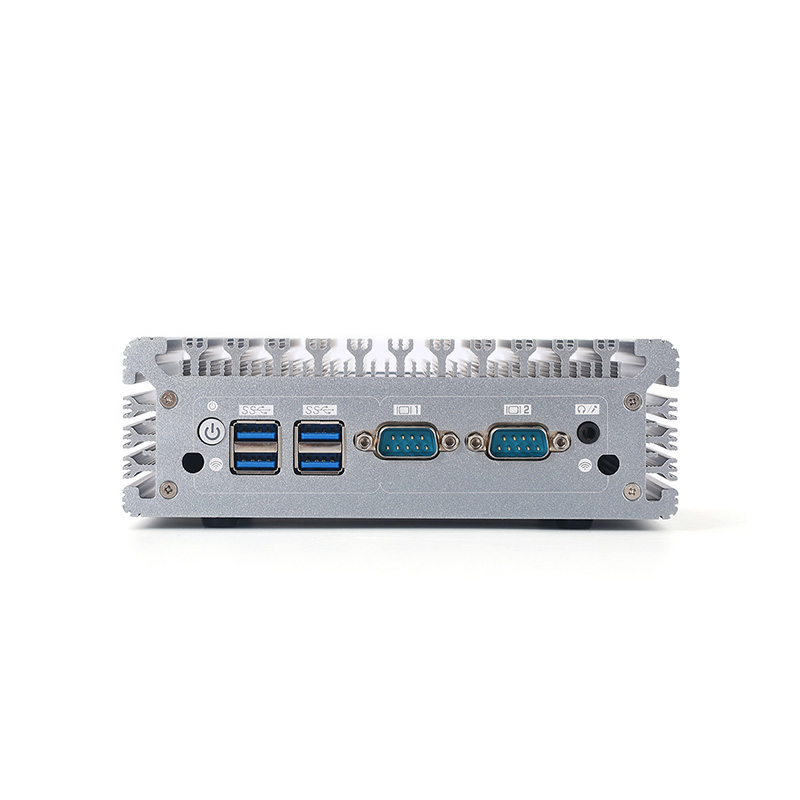

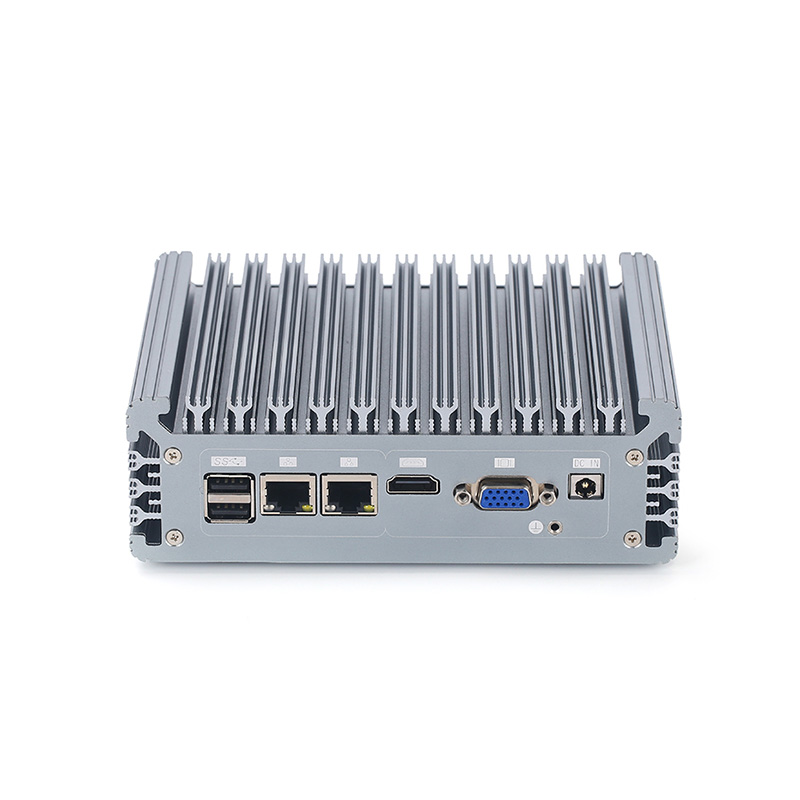

Industrial MINI PC Fanless IC03

The IC03 Industrial Mini PC is a high-performance, fanless embedded computing solution designed to meet the demands of industrial environments. Powered by the Intel® Core™ i5-5505U processor, this device is built for reliability, efficiency, and versatility. Its compact size, coupled with powerful processing capabilities, makes it ideal for a variety of industrial applications, from manufacturing to automation systems.

Key Features:

• Processor:
  Equipped with the Intel® Core™ i5-5205U CPU, featuring 2 cores, 4 threads, and a base frequency of 1.9 GHz. With a 2MB cache, it provides solid processing power for demanding applications.

• Memory:
  Supports 1x SO-DIMM DDR3L 1600 MHz, with a maximum capacity of 8GB for efficient multitasking and performance.

• Graphics:
  Integrated Intel® HD Graphics for smooth visuals. It supports 1 HDMI, 1 EDP, and 1 VGA display output.

• Storage Options:
  The IC03 provides flexible storage options, including 1 MSATA and 1 SATA for easy integration of storage devices based on your specific needs.

• Connectivity:

  • 2 x LAN (RJ45) ports for robust network connectivity (supports 10/100/1000Mbps adaptive network).

  • 4 x USB 3.0 and 2 x USB 2.0 ports for connecting peripherals.

  • 2 x COM ports with optional configurations of RS232/RS485 for industrial communication needs.

  • WiFi support for wireless connectivity.

  • 1 x Audio (Line-MIC) input.

• Expansion Options:

  • Mini-PCIe slot for additional expansion cards.

  • SIM card slot for 3G/4G connectivity (optional).

• Power Supply:
  The IC03 operates on a DC12V input with a voltage fluctuation tolerance of ±10% for flexibility in power sourcing.

• Environmentally Robust:

  • Operating temperature: 0°C to 60°C.

  • Storage temperature: -20°C to 85°C.

  • Humidity: 5% to 95% RH (non-condensing), ensuring reliable operation in various environments.

• Compact & Durable Design:
  The unit is built with a robust chassis measuring 163mm x 125mm x 53mm (L x W x H), perfect for tight industrial spaces where space is limited.

Applications:

The IC03 Industrial Mini PC is perfect for:

• Industrial Automation Systems

• Embedded Systems

• Digital Signage

• Machine Vision

• IoT Solutions

Why Choose IC03?

• Fanless Design:
  Ensures silent operation and increased reliability, reducing the risk of dust and heat buildup.

• 🔗 Learn why fanless industrial PCs outperform traditional computers in harsh conditions.

• Industrial Grade Build:
  With high operational temperature tolerance and rugged construction, the IC03 is ready for harsh industrial environments.

• Energy Efficient:
  The energy-efficient Intel® Core™ i5 processor and passive cooling system help lower operational costs and minimize energy consumption.

• Flexible Connectivity:
  Multiple USB, LAN, and COM ports ensure seamless integration with various industrial equipment and devices.
