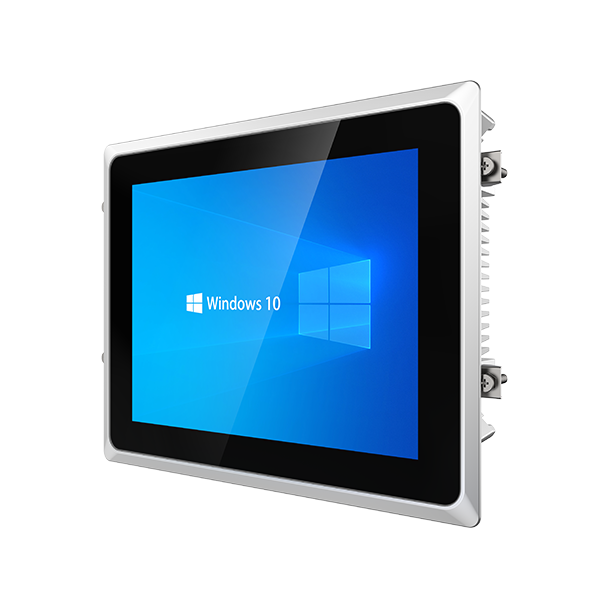

10.4inch industrial panel pc-left side
10.4inch industrial panel pc
10.4inch industrial panel pc-1
10.4inch industrial panel pc-left side
10.4inch industrial panel pc

IP105-104 10.4 Inch Industrial Touch Panel PC

The 10.4 inch industrial touch panel PC is designed to withstand even the most demanding environments. With its aluminum alloy die-cast casing, it provides superior strength and impact resistance.

The IP65 rating ensures that this panel PC is fully protected against dust and water, making it ideal for industrial settings where equipment is exposed to harsh elements.

Powered by Intel® Celeron® Tiger Lake UP3 or Alder Lake-U/P/H processors, this 10.4 inch industrial touch panel PC combines exceptional durability with advanced functionality.

Featuring a 10.4-inch 4:3 LCD screen with 1024×768 resolution, 300cd/m² brightness, and 10-point capacitive touch (G+G solution), it delivers crystal-clear visuals and precise touch response.

Features and Benefits of Valano IP105-104

Rugged Industrial Design
The IP105-104 features a full aluminum alloy enclosure engineered for durability in harsh industrial environments. Its fanless passive cooling design ensures silent, dustproof, and shockproof performance, ideal for continuous 24/7 operation.

Wide Voltage Input
Supports a DC 9-36 V power range with built-in short-circuit, over-voltage, and over-current protection. This design provides stable and reliable operation even under unstable power conditions.

Comprehensive I/O Connectivity
Equipped with a rich set of industrial interfaces, including:

  • 4 × USB 3.0 ports

  • 2 × Intel Gigabit LAN ports

  • 4 × COM ports (RS-232/485 optional)

  • 1 × HDMI port (up to 4096 × 2160 @ 60 Hz)
    This configuration ensures seamless integration with various industrial systems and peripherals.

High-Performance Hardware
Powered by Intel® Celeron® Tiger Lake UP3 or Alder Lake-U/P/H series processors for fast and efficient multitasking.

  • Memory: 2 × DDR4 SO-DIMM slots, supporting up to 64 GB RAM

  • Storage: 1 × M.2 M-Key 2280 NVMe SSD, plus optional 2.5-inch HDD for expanded storage capacity

  • Operating System: Compatible with Windows 10/11 and Linux for flexible software deployment

10.4-Inch Capacitive Touchscreen
The 10.4-inch industrial-grade capacitive touchscreen delivers precise, responsive control with excellent visibility, designed for both finger and glove operation.

IP65-Rated Front Panel
Provides strong protection against dust and water ingress, ensuring reliable performance in demanding industrial environments.

OS Recovery Function
Includes built-in system recovery tools for fast restoration in case of software failure, minimizing downtime and maintenance effort.

Fanless Passive Cooling
The fanless thermal design enables silent operation and reduces maintenance needs by preventing dust accumulation and mechanical wear.

Looking for a larger display? Explore our 15.6 Inch Industrial Panel PC for enhanced visibility and performance in industrial applications.

Valano IP105-104 Typical Applications

  • Information Display: The panel PC serves as a real-time monitoring screen, showing production status, machine parameters, or system data.
  • Safety Monitoring: It can display alarms, warnings, or emergency information, helping operators maintain a safe working environment.
  • Data Collection: Through connected sensors or PLCs, it gathers and displays process data for analysis and quality control.
  • Loading Applications: The system can run specific industrial control or automation software, such as SCADA or MES applications.
  • Barcode Scanning: Integrated with a barcode scanner, it’s often used for material tracking, warehouse management, or production traceability.

Industry Use Cases

  • Warehousing: Used for inventory control, barcode scanning, and logistics management.
  • Food Processing & Dairy: Monitors production lines, temperature, and hygiene processes in clean environments.
  • Mining: Provides rugged control and monitoring interfaces for heavy machinery or safety systems.
  • Transportation: Installed in vehicles or stations for scheduling, navigation, and system control.
  • Construction: Used on-site for equipment diagnostics, project data input, or machine control.
  • Agriculture & Horticulture: Manages irrigation systems, greenhouse automation, and field equipment monitoring.
  • Forestry: Controls logging equipment or tracks operations in remote areas.
  • Marine: Operates as navigation, monitoring, or engine control interfaces on ships or offshore platforms.



System Configuration
CPU Onboard Intel® Celeron® Tiger Lake UP3 i7/i5/i3 CPU
Onboard Intel® Celeron® Alder Lake-U/P/H Core™ i7/i5/i3 CPU
Memory
RAM 2×DDR4 SO-DIMM 3200Hz ,up to64GB
Dispaly
Screens and Touchscreens 10.4 inch LCD screen: 1024*768 resolution; MTBF: 50000 hours, brightness 300cd/m optional
Capacitive G+G touch program/10-point touch, response time <8ms, touch accuracy ≦2mm
Storage
SSD 1*M.2 M-Key 2280, support NVME protocol, also support 2.5 inch hard disk installation
OS
OS WIN10、 WIN11、LINUX
IO
DC IN 1, 2P Phoenix terminal, (DC_IN 9-36V, with short circuit, overvoltage and overcurrent protection)
HDMI 1, max resolution up to 4096*2160@60Hz
LAN 2*Intel I210AT Gigabit LAN card
USB 4*USB3.0 (dual-layer TYPE-A )
Audio 1*2-in-1 audio
COM 4*DB9 (COM1/2 optional RS232/485 mode)
Remote SW 1*4 PIN Phoenix terminal (remote switch + indicator)
PWR Switch 1*PWR SW+PWR LED
Expansion
Internal I/O 1*M.2 B-Key 2242/2252 support 5G/4G
1*M.2 E-Key 2230 support Wi-Fi/BT
Physical properties
Dimensions/Weight 277*222*57mm Net weight≈4.0 KG /Gross weight≈4.5KG
Material High-quality aluminium alloy + steel plate; fanless passive heat dissipation
Installation Built-in/Wall Mounting/Desktop
Environment
Operation Temperature: -10~60°C, Humidity: 5%~95%, non-condensing Humidity: 0% – 95% @40°C non-condensing
Storage Temperature: -20~85°C, Humidity: 5%~95%, non-condensing

Why Choose 10.4 Inch Indistrial Touch Panel PC

1. Industry Standard Compatibility
The 10.4-inch size is one of the most common panel formats in industrial automation. Many early PLC cabinets, machinery, and embedded systems were designed with cutouts for this exact dimension. When upgrading or replacing old equipment, users often prefer the same size for seamless integration.

2. Ideal for Control Interface Display
With a typical resolution of 1024×768, this size strikes a balance between visibility and compactness. Operators can easily view control buttons, status diagrams, and parameters, while the unit remains small enough to fit neatly into control panels or machine interfaces.

3. Cost and Power Efficiency
Compared with 12-inch or 15-inch industrial screens, a 10.4-inch panel consumes less power, generates less heat, and is more cost-effective. These advantages make it highly suitable for continuous operation in industrial environments.

4. Versatile Applications
It is widely used in production line control, HMI (Human-Machine Interface) systems, testing stations, embedded automation equipment, and transportation systems. The 10.4-inch format offers an optimal balance—large enough for clear display, yet compact enough for space-limited installations.

Flexible Installation Options for 10.4-Inch Panel PC

Our 10.4-inch industrial touch panel PC is designed with installation flexibility to suit different industrial environments. Whether you’re integrating it into existing equipment, mounting it on a wall, or setting it on a workstation, it provides reliable performance and easy setup.

Embedded Installation
The embedded option is ideal for machine panels or control cabinets where space is limited. The panel fits seamlessly into pre-cut openings, offering a clean, professional look while protecting the device from dust and accidental impact.

Wall-Mounted Installation
The wall-mounted setup is perfect for factory walls or production monitoring stations. It keeps the screen at an accessible height for operators and saves workspace, making it suitable for environments that require continuous visual monitoring.

Desktop Mounting
For workbenches, testing stations, or control desks, the desktop mounting option offers stability and easy access. It allows operators to adjust the viewing angle for comfort and convenience during frequent use.

FAQ

1. What is the screen size and resolution of the IP105-104 industrial panel PC?

The IP105-104 features a 10.4-inch 4:3 LCD screen with a resolution of 1024×768. This 10.4 inch industrial panel PC is designed for clear and precise display in industrial environments, making it ideal for control panels, kiosks, and monitoring systems.

2. Does the Vakla support touchscreen functionality?

Yes, the IP105-104 comes with a 10-point capacitive touchscreen (G+G solution) that offers high accuracy (≤2mm) and fast response time (<8ms). This industrial touchscreen panel PC is perfect for applications requiring intuitive and responsive touch input.

3. What are the typical applications for the IP105-104 industrial panel PC?

The IP105-104 is ideal for:

  • Industrial Automation: Control and monitoring in manufacturing plants.
  • Outdoor Kiosks: Reliable operation in harsh environments.
  • Transportation: Vehicle-mounted systems with wide voltage input.
  • Energy Management: Monitoring and control in power plants.



Request a Quote for 10.4-Inch Industrial Touch Panel PCs

Get pricing and customization options tailored to your project needs. Our team will help you configure the perfect industrial panel PC for your application.
