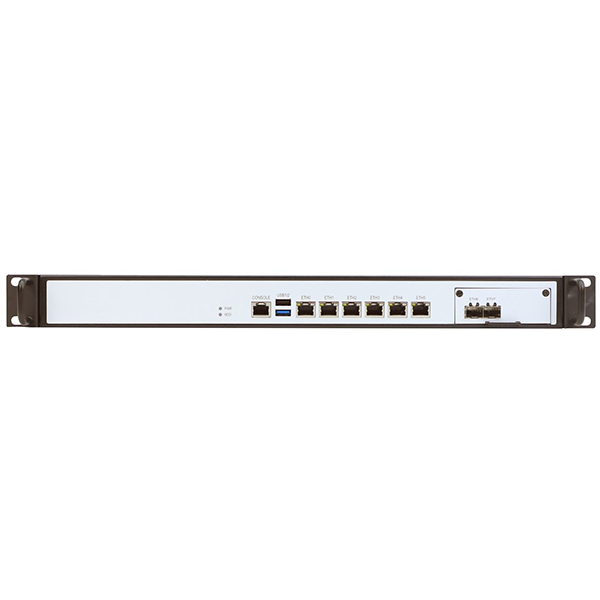

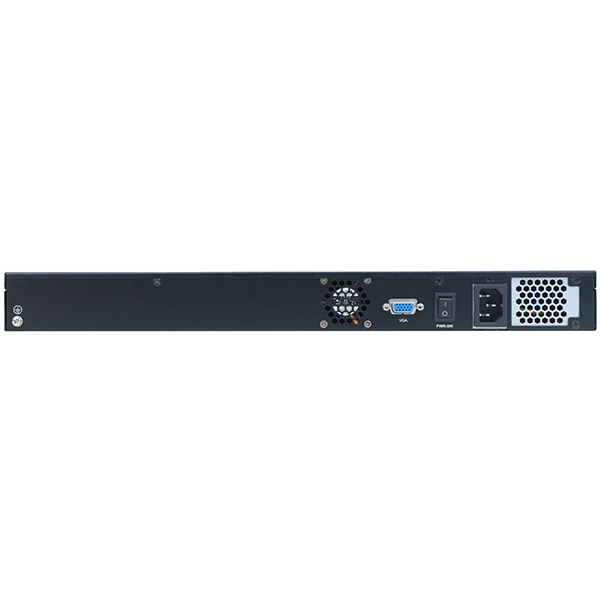

1U Network Security Appliance | F01-1U6412-6L
High-performance 1U network security appliance with Intel J6412 CPU & 6 Intel LAN ports. Ideal for firewall, VPN, IPS/IDS. Supports pfSense, OPNsense.
- Intel® Elkhart Lake J6412 processor for efficient network security processing
- 6 LAN ports (Intel WGI210AT) for comprehensive network connectivity
- DDR4 3200MHz memory support up to 32GB
- Multiple storage options: mSATA, SATA (supports 2.5″/3.5″ HDD)
- Advanced security features: Watchdog, bypass, power on by incoming call, diskless boot
- Flexible expansion via Mini-PCIe and PCIe x4 slots
- Built-in Huntkey 75W power supply for reliable operation
Valano F01-1U6412-6L Network Security Appliance – Product Details
The Valano F01-1U6412-6L is a high-performance network security appliance designed for enterprise-grade protection. Featuring an Intel® Elkhart Lake J6412 processor and six Intel-powered LAN ports, this 1U rack-mountable device is ideal for security audit, content filtering, traffic control, IPS/IDS, firewall, and VPN applications.
-
Applications
The Valano F01-1U6412-6L network security appliance is perfect for:
-
Enterprise Firewalls: Protect your network perimeter with robust security
-
VPN Gateways: Secure remote access solutions
-
Intrusion Prevention/Detection (IPS/IDS): Real-time network threat prevention
-
Content Filtering: Control and monitor web access
-
Traffic Shaping: Optimize bandwidth allocation
-
Security Auditing: Comprehensive network monitoring
Why Choose Valano F01-1U6412-6L?
-
Optimized for Security: Specifically designed for network security applications with six high-performance Intel LAN ports
-
Energy Efficient: Low-power Intel processor reduces operational costs
-
Reliable Operation: Industrial-grade components ensure 24/7 uptime
-
Flexible Deployment: Supports both traditional and diskless boot environments
-
Future-Proof: PCIe expansion slot allows for additional network interfaces or specialized security hardware
-
| Processor System | |
| CPU | Intel® Elkhart Lake J6412 |
| Memory | |
| Slot Number | 1×SO- DIMM |
| Type | DDR4 3200 |
| Max Size | 32GB (Optional) |
| Channels | Single Channel |
| Storage | |
| mSATA | 1 (Optional) |
| SATA | 1 (Support 2.5-inch or 3.5-inch hard disk) |
| Expansion Slot | |
| Mini-PCIe | 1 |
| SIM Card | 1 |
| PCIex4 | 1(Supports expansion of 2 electrical/2 optical/4 electrical/4 optical) |
| Power Requirements | |
| Input PWR | 4Pin ATX interface |
| Rear IO | |
| LAN | Onboard 6 power supplies (Intel WGI210AT) |
| USB3.0 | 2 |
| Console | 1 |
| HDD LED | 1 |
| PWR LED | 1 |
| VGA | 1 |
| Mechanical & Environment | |
| Dimension | 430*300*44 (W×D×H) |
| Operation | -10~60℃, 10%~90%, non-condensing |
| Storage | -40~85℃, 5%~95%, non-condensing |
