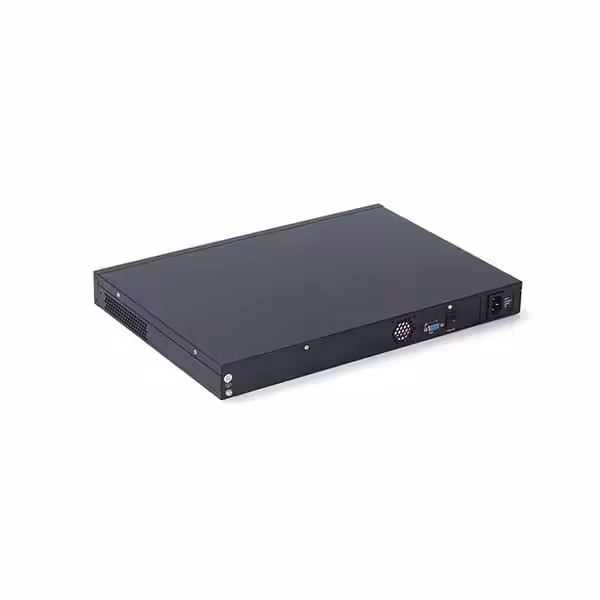

6-Port 1U Rackmount Network Security Appliance | F01-1U1900-6L
Compact 1U rackmount security appliance with 6x Gigabit LAN ports and PCIe expansion for high-density network protection.
✔ 6x Intel LAN Ports – For heavy traffic & multi-zone security
✔ PCIe x4 Expansion – Add fiber/encryption modules
✔ Industrial-Grade – Reliable 24/7 operation (-10°C~60°C)
Product Overview
The 6-Port 1U Rackmount Network Security Appliance F01-1U1900-6L is a high-density 1U rackmount security appliance designed for demanding network environments. Featuring 6x Intel-powered Gigabit LAN ports and a PCIe x4 expansion slot, this device delivers unparalleled flexibility for multi-zone firewall setups, VPN concentrators, and high-throughput traffic inspection. Its compact form factor and industrial-grade durability make it perfect for ISPs, data centers, and enterprise edge security.
Key Features & Differentiators
1. High-Density Network Connectivity
-
6x Gigabit LAN Ports: Intel WGI210AT controllers for reliable, low-latency traffic handling.
-
PCIe x4 Expansion Slot: Supports 2/4 electrical or optical modules (e.g., fiber NICs, encryption cards).
2. Enterprise-Grade Security
-
Hardware Bypass & Watchdog: Zero-downtime failover and automatic recovery.
-
Dual Storage (mSATA + SATA): RAID-ready for critical logging or boot redundancy.
-
SIM Slot & Mini-PCIe: Optional 4G/LTE or Wi-Fi for remote site deployments.
3. Rugged & Scalable Design
-
Industrial Temp Range: Operates in -10°C to 60°C environments.
-
75W Huntkey PSU: Energy-efficient power for 24/7 operation.
Technical Specifications
| Category | Details |
|---|---|
| Processor | Intel® Bay Trail J1900 Quad-Core |
| Memory | 1x DDR3L SO-DIMM (1333MHz, max 8GB) |
| Storage | 1x mSATA, 1x SATA (2.5″/3.5″ HDD/SSD) |
| Expansion | 1x PCIe x4 (supports 2/4 electrical/optical modules), 1x Mini-PCIe, 1x SIM |
| Network | 6x Gigabit LAN (Intel WGI210AT) |
| I/O Ports | 1x USB 3.0, 1x USB 2.0, 1x VGA, 1x Console |
| Power | 75W Huntkey PSU (4Pin ATX) |
| Dimensions | 430mm (W) × 300mm (D) × 44mm (H) |
| Processor System | |
| CPU | Intel® Bay Trail J1900 processor |
| Memory | |
| Slot Number | 1×SO- DIMM |
| Type | DDR3L 1333 |
| Max Size | 8GB (optional memory) |
| Channels | Single Channel |
| Storage | |
| mSATA | 1 (optional hard disk) |
| SATA | 1 (supports 2.5-inch or 3.5-inch hard disk) |
| Expansion Slot | |
| Mini-PCIe | 1 |
| SIM Card | 1 |
| PCIex4 | 1 (support expansion of 2 electrical/2 optical/4 electrical/4 optical/) |
| Power Requirements | |
| Input PWR | 4Pin ATX interface |
| Rear IO | |
| LAN | Onboard 6 power supplies (Intel WGI210AT) |
| USB3.0 | 1 |
| USB2.0 | 1 |
| Console | 1 |
| HDD LED | 1 |
| PWR LED | 1 |
| VGA | 1 |
| Mechanical & Environment | |
| Dimension | 430*300*44 (W×D×H) |
| Operation | -10~60℃，10%~90%，non-condensing |
| Storage | -40~85℃，5%~95%，non-condensing |
